Mercedes' Solid-State Battery Prototype Comes Out Of The Lab, Onto The Road

With the same battery size and same weight, the solid-state chemistry is expected to deliver 25% more range on the prototype EQS.

by Suvrat Kothari, insideevs.com

• Mercedes-Benz and Factorial announced a prototype EQS equipped with a solid-state battery. Road testing has already started.

• Solid-state batteries promise more range, faster charging times and better fire safety at similar or reduced weight compared to traditional lithium-ion batteries.

• The EQS is expected to deliver 620 miles (1,000 kilometers) of range on the WLTP cycle.

Solid-state batteries have been a long time coming. For years, it felt like they were stuck in the experiment phase, but that’s finally starting to change with more real-world applications.

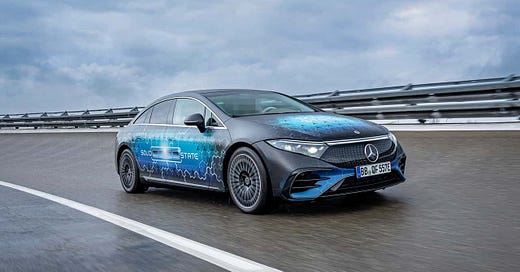

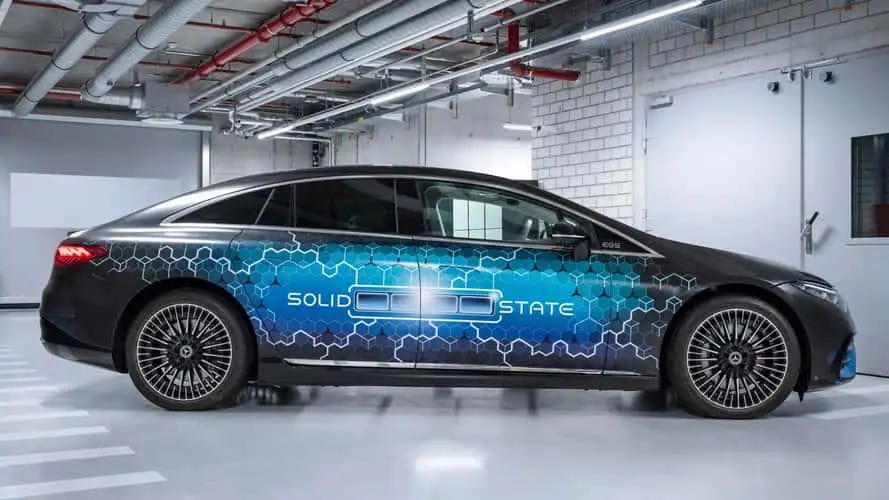

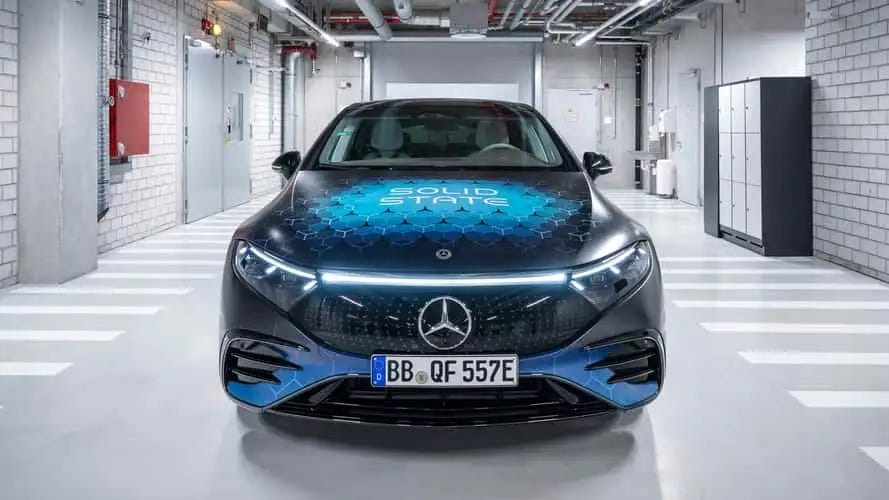

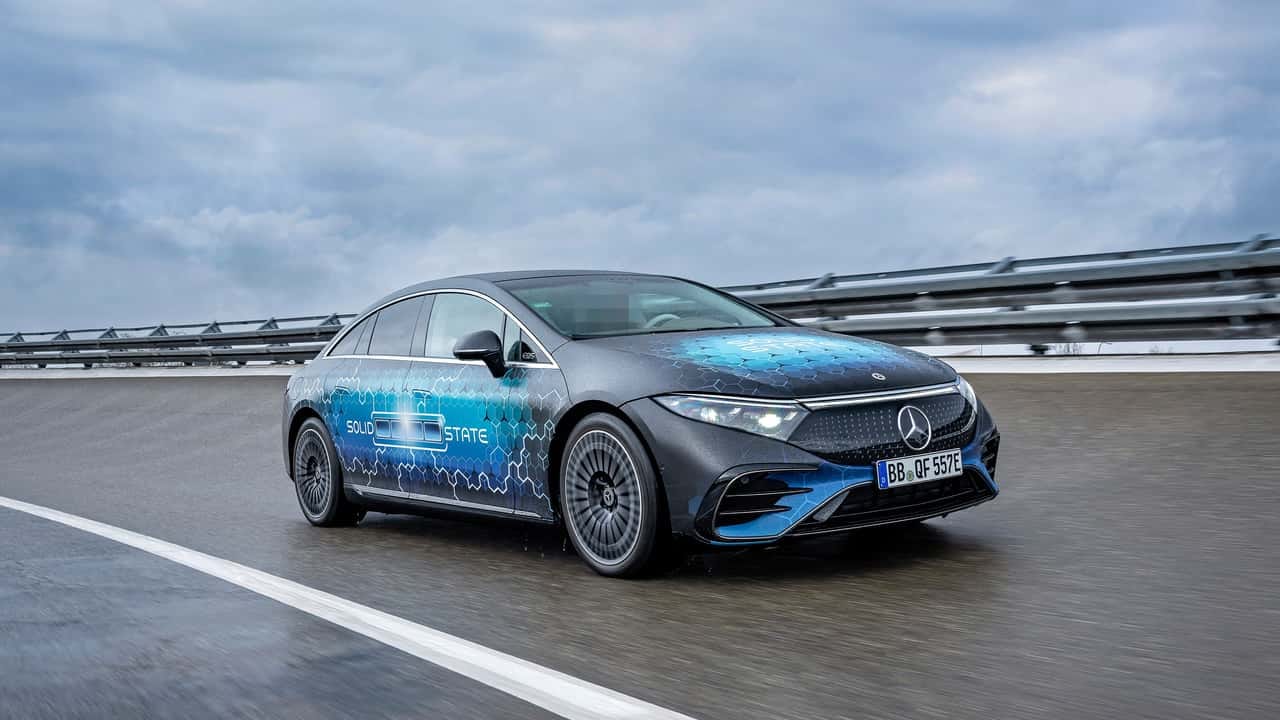

Mercedes-Benz and American battery start-up Factorial Energy have developed a prototype EQS equipped with a solid-state battery. The companies claim it's the "world's first solid-state battery vehicle from a global OEM." It’s already out on the road doing test runs.

The EQS is expected to deliver 620 miles (1,000 kilometers) of range, the automaker announced on Monday. That's an improvement of over 25% compared to the WLTP range of the current EQS 450+ in the U.K., which stands at around 481 miles. The EQS gets a usable battery capacity of 118 kilowatt-hours.

WLTP figures are typically about 22% higher than EPA estimates, so the EQS would still deliver about 527 miles of range by EPA standards. That’s very close to what a Lucid Air can already achieve with a traditional NMC pack.

But the EQS' solid-state pack brings weight and efficiency advantages. The automaker claims that the solid-state pack delivers 25% more range with the same size and weight of current lithium-ion packs. And there’s potential to increase the range up to 40%.

A traditional lithium-ion battery uses a liquid electrolyte to move electrons between charge cycles. A solid-state battery uses a solid electrolyte, allowing more energy density and improved fire safety. It also promises significant weight reductions.

Semi-solid-state batteries use a gel-like electrolyte, splitting the difference between a traditional liquid electrolyte and a true solid-state solution. Several Chinese EVs like the Nio ET7 and IM L6 are already equipped with such packs. They’re considered a “hybrid” battery solution that can leverage existing manufacturing processes while being faster to scale up.

Autocar reported that the battery being tested on the EQS marks the initial step towards incorporating Factorial's more advanced "Solstice" all-solid-state battery (ASSB). InsideEVs has reached out to Factorial to confirm if that initial step involves a semi-solid state pack or an ASSB.

The battery on the EQS also features a lithium-metal anode, which stores more energy than traditional graphite anodes in the same amount of space. However, studies suggest that dendrite formation can be a concern for lithium-metal chemistries. They are small metal projections that can short a battery, and have been a major obstacle in the development of solid-state batteries. Mercedes and Factorial must have made some progress there, though, if they're moving forward with this design.

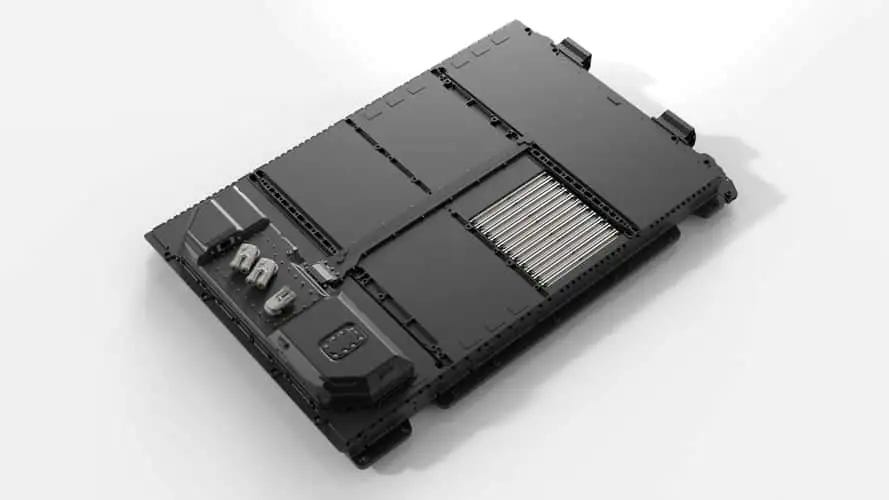

Factorial’s battery on the EQS uses a “floating cell carrier.” When the battery charges, the material expands, and when it discharges, it contracts. To support this expansion and contraction of materials, the battery is equipped with pneumatic actuators developed by Mercedes' Formula 1 engineers at its motorsport headquarters in Brixworth, U.K.

---
